      Sand making machine

      Product time:2020-03-27 15:30

      Description:

      Sand making machine, also known as sand making machine, Hengyuan·China-Phoenix based on the original high-performance HX series sand making machine, combined with the actual operation of the equipment under different working conditions and ...

      Detailed introduction
      Product electronic sample: https://www.yunzhan365.com/bookcase/sbhc/

      Sand making machine parameters:

      Model

      Maximum feed
      size

      (mm)

      Rotor
      diameter
      (mm)

      Rotating
      speed
      (m/s)

      Motor
      Power(Kw)

      Processing
      capacity(t/h)

      Weight
      (Kg)

      Dimensions
      (mm*mm*mm)




      HX-1000





      30



      1040

      60

      132×2

      180

      17800

      5170X2880X3150

      160×2

      210

      70

      110×2

      130

      132×2

      170







      HX-1200





      35





      1235

      60

      132×2

      230

      18500

      5170X2880X3150

      160×2

      260

      185×2

      280

      70

      132×2

      200

      160×2

      240

      185×2

      260


      Shaper parameters:

      Model

      Feed size(mm)

      Rotating
      speed(m/s)

      Processing
      capacity

      (t/h)

      Motor Power

      (kw)

      Weight

      (kg)

      Dimensions(mm)

      HB-1000

      40

      45

      133-174

      110×2

      17500

      5710×2880×3150

      40

      50

      181-220

      132×2

      17500

      5710×2880×3150

      HB-1200

      40

      45

      185-240

      132×2

      18300

      5710×2880×3150

      40

      50

      220-260

      160×2

      18300

      5710×2880×3150

      40

      50

      255-300

      185×2

      18300

      5710×2880×3150

      Note: Parameters are subject to change without prior notice, please contact us.

      Introduction to sand making machine:
      Sand making machine, also known as sand making machine, Hengyuan·China-Phoenix based on the original high-performance HX series sand making machine, combined with the actual operation of the equipment under different working conditions and the feedback suggestions of the operators, the developed unit A crushing device with lower cost, higher crushing efficiency and intelligent operation control.
      The machine significantly reduces the material flow resistance, improves the material passing ability, reduces the wearing rate of wearing parts, improves the energy utilization rate, and prolongs by improving the feeding mode, optimizing the crushing cavity type, adopting the new rotor design, and installing the lifting device. Maintenance cycle and shortened maintenance time.

      Sand machine working principle:
      After the material of the sand making machine is continuously conveyed to the distributor above the sand making machine, natural accumulation (full cavity feeding) is formed in the distributor, and then naturally falls from the center of the distributor and the surrounding to the sand making machine. Inside the chamber, the material entering from the center of the distributor enters the impeller, rapidly accelerates through the high-speed rotating impeller, and then ejects from the impeller with tens of times of gravitational acceleration. The material that is thrown at a high speed first completes the secondary impact crushing (stone stone) with the material falling freely from the periphery of the distributor, and then impacts together on the inner shield of the vortex chamber to complete the second crushing (stone striking). The material that continues to impact the perimeter panel is continuously bounced back and again collided with the material ejected from the center of the impeller at high speed to form a continuous uninterrupted fracture. Thus, after a piece of material is crushed by multiple impacts in the vortex chamber, the finished product is removed by the discharge opening below the sand making machine.

      Sand machine performance characteristics:
      1. Excellent launch port and smoother curved design inside, reduce the flow resistance of materials, greatly improve the material passing ability, and the crushing efficiency is higher;
      2. The optimized design of the bulk tray and hydraulic device realizes the combination of the waterfall type feeding and the center feeding, and the adjustment of the center feeding amount is more convenient, so that the materials in the crushing chamber are fully broken;
      3. Optimized motor frame structure, motor frame and observation and maintenance platform integrated design, compact structure, stable and reliable operation;
      4. The perimeter guard plate is assembled with two upper and lower parts. It can be used after being worn, which can prolong the service life of wear parts and reduce operating costs.
      5. The motor base adopts hydraulic adjustment and control components to ensure that the forces on both sides of the main shaft are consistent;
      6. The upper cover lifting arm and lifting device are all hydraulically controlled, and the replacement of wearing parts is more convenient and quicker;
      7. It adopts oil-free seal leakage-proof structure design and multi-pipe thin oil lubrication to achieve simultaneous lubrication of upper and lower bearings, which significantly improves bearing life cycle;
      8. Bring your own vibration detection and alarm device. If the equipment malfunctions, you can issue a warning and the equipment will stop working quickly to achieve the purpose of protecting the machine.
      9. Thin oil lubrication station, double oil pump complements to ensure oil supply, automatic detection of oil quantity, no oil flow, no oil pressure, automatic shutdown.

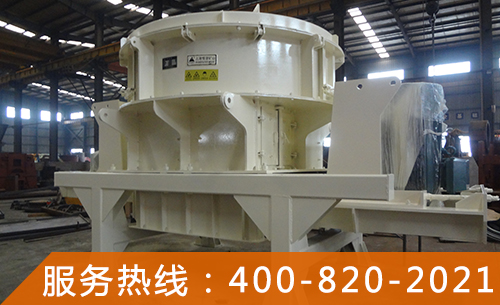

      Sand machine factory picture:
      Sand making machine

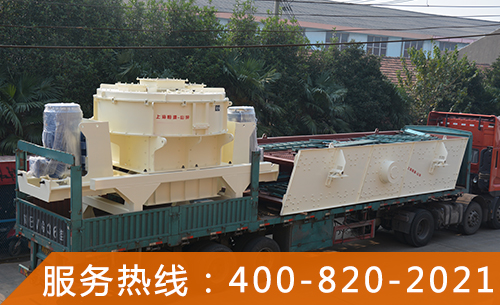

      Sand making machine delivery pictures:
      Sand making machine

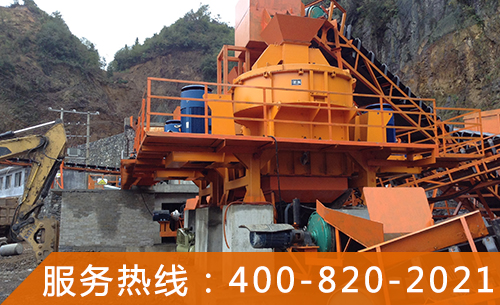

      Sand machine scene picture:
      Sand making machine

      Sand making machine

      Sand making machine

      Sand making machine video: to be uploaded

      Sand making machine price:
      The price is determined by the model purchased by the customer, so please call the customer to request it.
